Seco

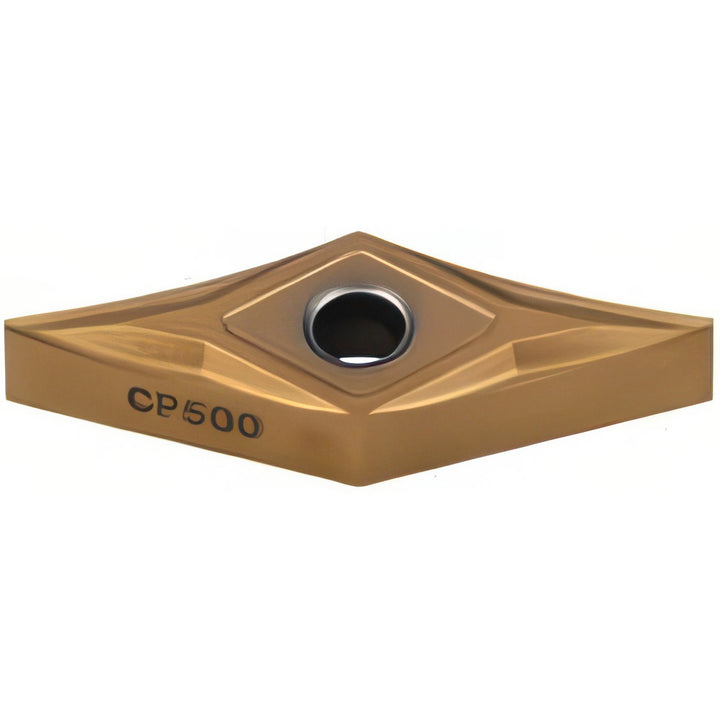

VNGM160404-MF1 Carbide Insert, Grade CP500, TiAlN - Seco 00000186
MFR# 00000186ISO/ANSI# VNGM331F-MF1Series VNGM-MF1
$52.38List $67.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00000186 is a VNGM160404-MF1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGM331F-MF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVNGM
Insert thickness in3/16
Iso codeVNGM160404-MF1
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number00000186
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
