Seco

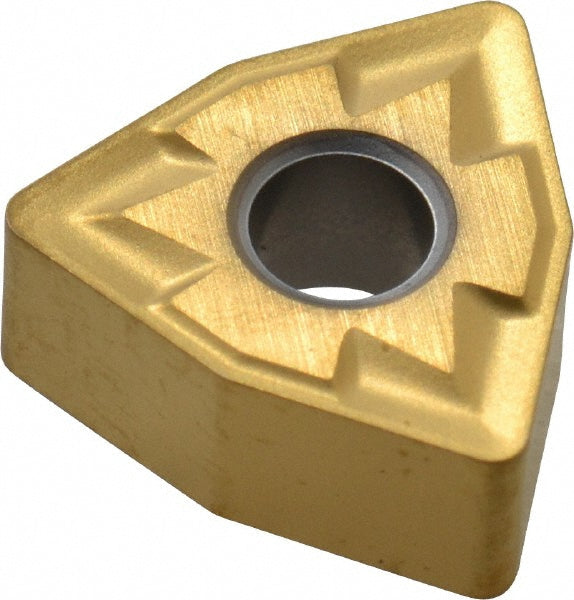

WNMG060408-MR3 Carbide Insert, Grade CP500, TiAlN - Seco 00000219
MFR# 00000219ISO/ANSI# WNMG332-MR3Series WNMG-MR3
$17.02List $21.82
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00000219 is a WNMG060408-MR3 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMR3
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG332-MR3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408-MR3
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number00000219
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2441
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
