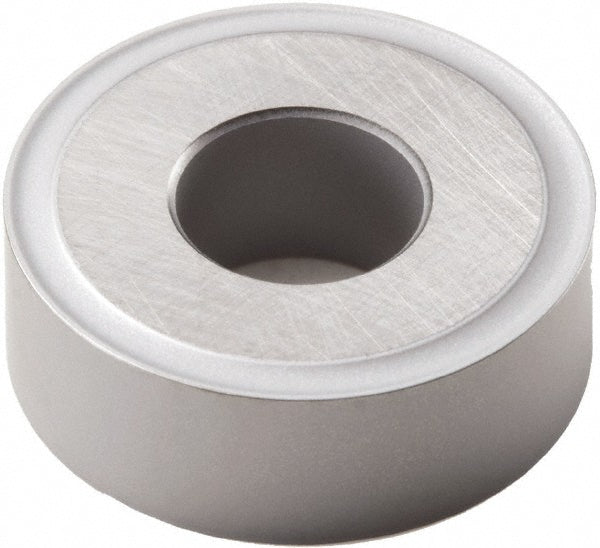

RNMG190600-MR4 Carbide Insert, Grade 883 - Seco 00001950

Seco

RNMG190600-MR4 Carbide Insert, Grade 883 - Seco 00001950

MFR# 00001950ISO/ANSI# RNMG64-MR4Series RNMG-MR4

$27.61List $35.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeRound
Grade883
MaterialCarbide

Description

The Seco 00001950 is a RNMG190600-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Chip breakerMR4
Clearance codeN
Coating processUncoated
Corner radius in3/8
Cutting edge styleT-Land
Full radiusYes
Hole diameter0.3118
Included angle360degree
Industry standard numberRNMG64-MR4
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in3/4
Insert materialCarbide
Insert shapeRound
Insert size code64
Insert styleRNMG
Insert thickness in1/4
Iso codeRNMG190600-MR4
Lead angle360degree
Length range0.7000 - 10.0000
Manufacturers catalog number00001950
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.3750
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
