Seco

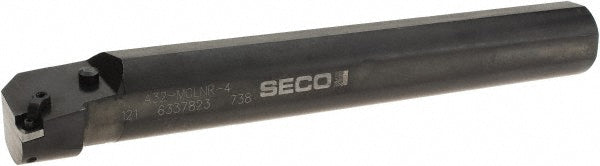

Indexable Boring - Seco 00002683
MFR# 00002683
$535.27List $612.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00002683 indexable boring.
Specifications
Center to cutting edge1.2810
Compatible insert shapeDiamond
Compatible insert size code43
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Insert compatibilityCNMG 432
Insert holding methodPin & Clamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle95.00
Minimum bore diameter2.5600
Multi use toolNo
Overall length16.0000
RakeNegative
Rake angle-5.00
Shank diameter in2
Toolholder styleA-MCLN
Tool materialSteel
