Seco

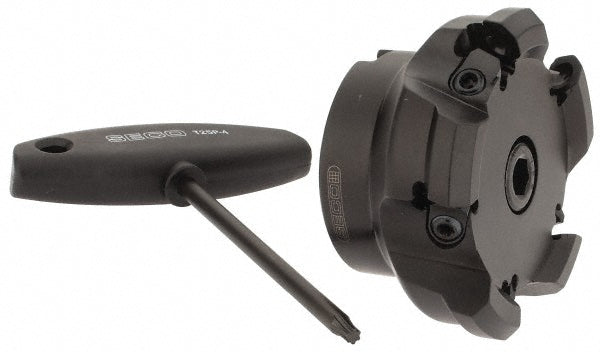

Indexable Milling Cutters - Seco 00003266
MFR# 00003266Series R220.43
$1,057.26List $1,123.20
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Seco 00003266 indexable milling cutters. Series R220.43.
Specifications
Arbor hole diameter in1
Compatible insert size codeOF 070405
Coolant throughNo
Cutter styleR220.43
Cutting directionRight Hand
Hub diameter2.4410
Insert holding methodWedge
Keyway width0.3800
Maximum body diameter3.6200
Maximum cutting diameter2.9500
Maximum depth of cut0.1970
Maximum rpm5000
Minimum cutting diameter2.4800
Number of cutter inserts5
Number of flutes5
Overall height1.9700
Pitch typeNormal
RakePositive
Tool applicationFacing
