Seco

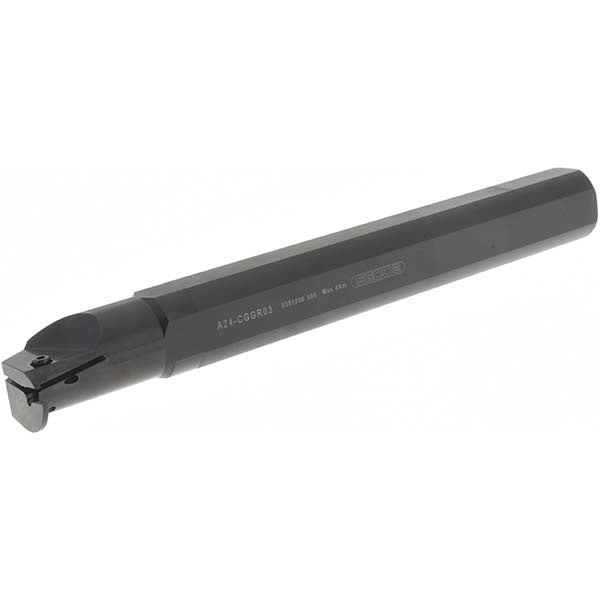

Indexable Grooving - Seco 00003293
MFR# 00003293Series Multi-Directional Turning (MDT)
$643.52List $671.76
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00003293 indexable grooving. Suited for stainless steel. Series Multi-Directional Turning (MDT).
Specifications
Center to cutting edge1.1250
Compatible insert size codeLC1603
Complete insert compatibilityLC.. 1603..; LCGN; LCMF; LCMR
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head height2.3600
Head length2.3620
Insert compatibilityLC..1603..
Insert holding methodClamp
Maximum depth of cut0.4400
Maximum groove width0.1180
Minimum bore diameter1.8000
Minimum groove width0.1180
Minimum hole diameter1.8000
Msc manufacturer numberA24-CGGR/L 03
Multi use toolYes
Overall length in12
Primary workpiece materialStainless Steel
Shank height1.3820
Shank length9.6380
Shank width diameter in1-1/2
Toolholder materialSteel
Toolholder styleA..-CGGR
Toolholder typeNon-Face Grooving
