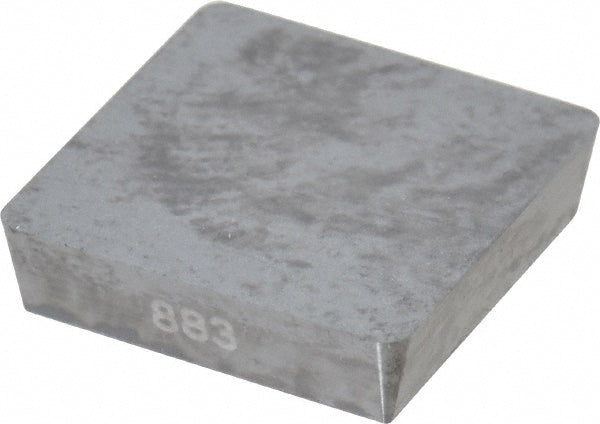

SPGN120308 Carbide Insert, Grade 883 - Seco 00003860
MFR# 00003860ISO/ANSI# SPG422FSeries SPG-Flat Top
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade883
MaterialCarbide
Description
The Seco 00003860 is a SPGN120308 carbide indexable insert, grade 883. Suited for superalloys & titanium.
Specifications
Chip breakerFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle90degree
Industry standard numberSPG422F
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code422
Insert styleSPG
Insert thickness in1/8
Iso codeSPGN120308
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number00003860
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.4409
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
