Seco

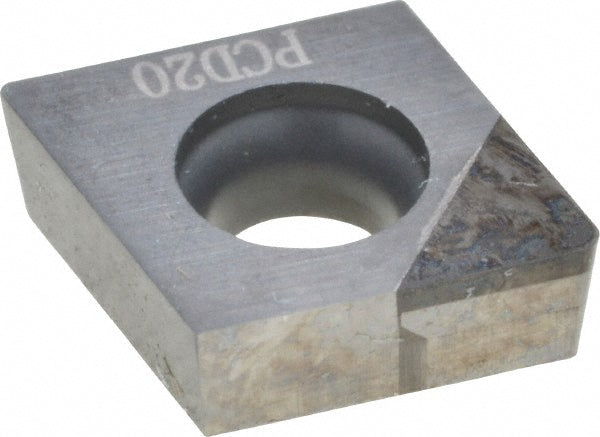

CCMW060204F-L1 PCD Insert, Grade PCD20 - Seco 00005684
MFR# 00005684ISO/ANSI# CCMW21.51F-L1Series CCMW-Flat Top
$175.74
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradePCD20
MaterialPCD
Description
The Seco 00005684 is a CCMW060204F-L1 pcd indexable insert, grade PCD20. Suited for non-ferrous metal.
Specifications
Chip breakerFlat Top
Clearance codeC
Coating processPCD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMW21.51F-L1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialPCD
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCMW
Insert thickness in3/32
Iso codeCCMW060204F-L1
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number00005684
Manufacturer gradePCD20
Material gradeN10; N15; N20
Maximum depth of cut0.0591
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
