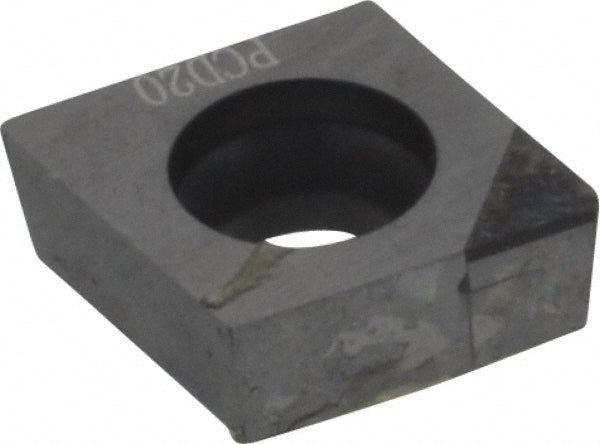

CCMW09T304F-L1 PCD Insert, Grade PCD20 - Seco 00005686
MFR# 00005686ISO/ANSI# CCMW32.51F-L1Series CCMW-Flat Top
$175.74
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradePCD20
MaterialPCD
Description
The Seco 00005686 is a CCMW09T304F-L1 pcd indexable insert, grade PCD20. Suited for non-ferrous metal.
Specifications
Chip breakerFlat Top
Clearance codeC
Coating processPCD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMW32.51F-L1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialPCD
Insert shapeDiamond 80
Insert size code32.51
Insert styleCCMW
Insert thickness in5/32
Iso codeCCMW09T304F-L1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number00005686
Manufacturer gradePCD20
Material gradeN10; N15; N20
Maximum depth of cut0.0669
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
