Seco

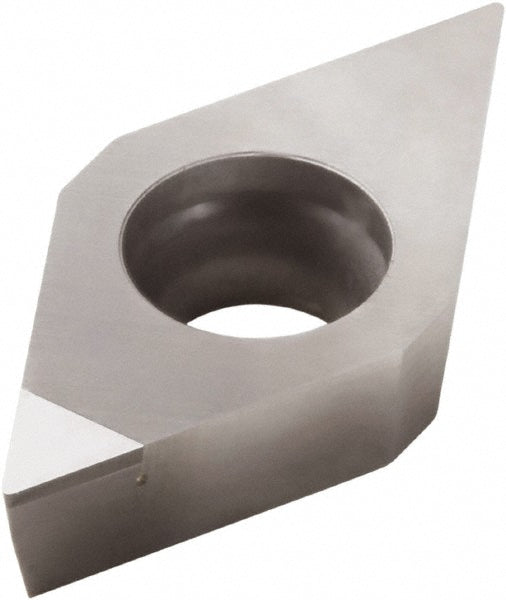

DCMW11T304F-L1 PCD Insert, Grade PCD20 - Seco 00005688
MFR# 00005688ISO/ANSI# DCMW32.51F-L1Series DCMW-Flat Top
$175.74
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradePCD20
MaterialPCD
Description
The Seco 00005688 is a DCMW11T304F-L1 pcd indexable insert, grade PCD20. Suited for non-ferrous metal.
Specifications
Chip breakerFlat Top
Clearance codeC
Coating processPCD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMW32.51F-L1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialPCD
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCMW
Insert thickness in5/32
Iso codeDCMW11T304F-L1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number00005688
Manufacturer gradePCD20
Material gradeN10; N15; N20
Maximum depth of cut0.0701
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
