Seco

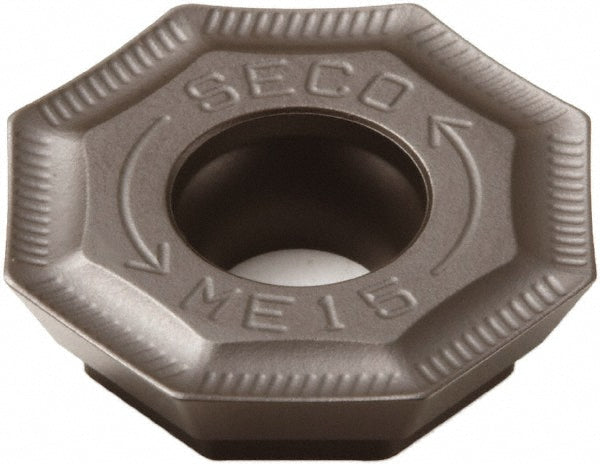

OFET070405TN-ME15 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00005743
MFR# 00005743ISO/ANSI# OFET070405TN-ME15Cat# OFET070405TN-ME15Series OFET-07
$34.10List $43.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00005743 is a OFET070405TN-ME15 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeOFET070405TN-ME15
Chip breakerME15
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityR220.43-07
Cutting edge effective length0.2941
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7063
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code070405
Insert styleOFET
Iso codeOFET070405TN-ME15
Length0.7063
Length range0.7000 to 0.9000
Manufacturers catalog numberOFET070405TN-ME15
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle26
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1795
Thickness range0.1750 to 0.1850
Width0.7063
