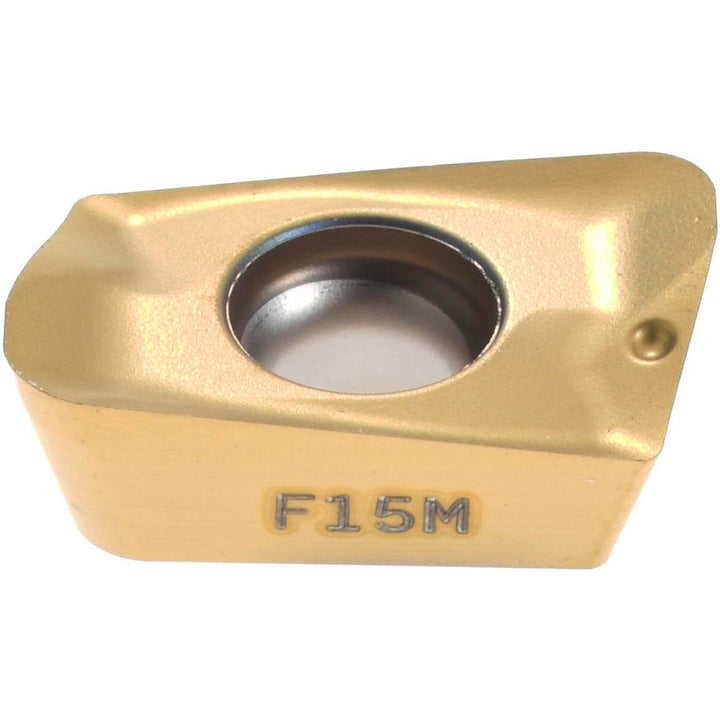

XOEX120416FR-E06 Solid Carbide Insert, Grade F15M, TiAlN - Seco 00005982

Seco

XOEX120416FR-E06 Solid Carbide Insert, Grade F15M, TiAlN - Seco 00005982

MFR# 00005982ISO/ANSI# XOEX120416FR-E06Cat# XOEX120416FR-E06Series XOEX-12

$27.37List $35.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeF15M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 00005982 is a XOEX120416FR-E06 solid carbide indexable insert, grade F15M, TiAlN coated. Suited for hard material.

Specifications

Ansi codeXOEX120416FR-E06
Chip breakerE06
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.4724
Cutting edge styleSharp
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120416
Insert styleXOEX
Iso codeXOEX120416FR-E06
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberXOEX120416FR-E06
Manufacturer gradeF15M
Material applicationHard Material
Material gradeFine Grain
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle26.3
Relief angle15.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1980
Thickness range0.1850 to 0.2000
Width0.3228
