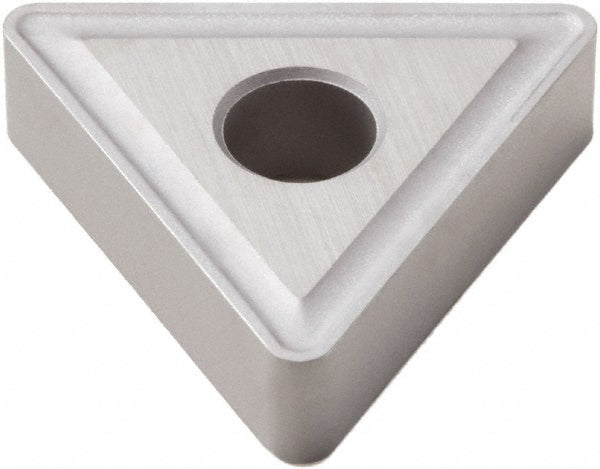

TNMG110304-MR4 Carbide Insert, Grade 883 - Seco 00007320

Seco

TNMG110304-MR4 Carbide Insert, Grade 883 - Seco 00007320

MFR# 00007320ISO/ANSI# TNMG221-MR4Series TNMG-MR4

$7.67List $9.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
Grade883
MaterialCarbide

Description

The Seco 00007320 is a TNMG110304-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Chip breakerMR4
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.0890
Included angle60degree
Industry standard numberTNMG221-MR4
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG110304-MR4
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number00007320
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.4173
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.4331in
Wiper edgeNo
