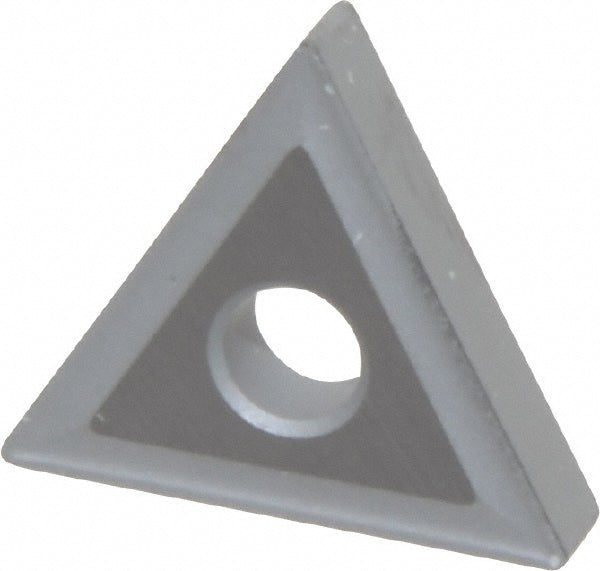

TNMG160304-MR4 Carbide Insert, Grade 883 - Seco 00007350

Seco

TNMG160304-MR4 Carbide Insert, Grade 883 - Seco 00007350

MFR# 00007350ISO/ANSI# TNMG321-MR4Series TNMG-MR4

$11.54List $14.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
Grade883
MaterialCarbide

Description

The Seco 00007350 is a TNMG160304-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Chip breakerMR4
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG321-MR4
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG160304-MR4
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number00007350
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.6339
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
