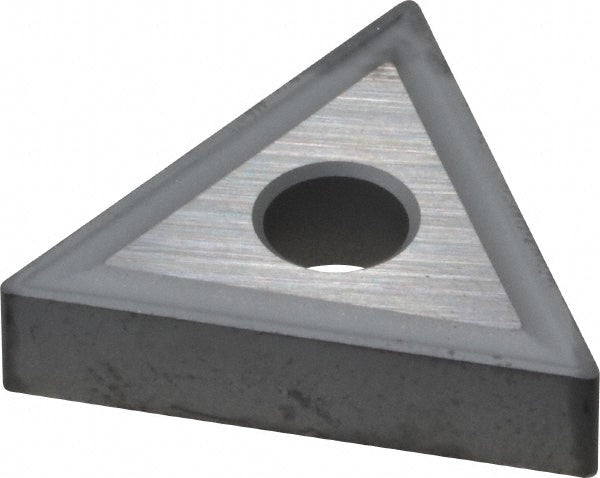

TNMG220404-MR4 Carbide Insert, Grade 883 - Seco 00007475

Seco

TNMG220404-MR4 Carbide Insert, Grade 883 - Seco 00007475

MFR# 00007475ISO/ANSI# TNMG431-MR4Series TNMG-MR4

$17.02List $21.82 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
Grade883
MaterialCarbide

Description

The Seco 00007475 is a TNMG220404-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Chip breakerMR4
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle60degree
Industry standard numberTNMG431-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220404-MR4
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number00007475
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.8268
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
