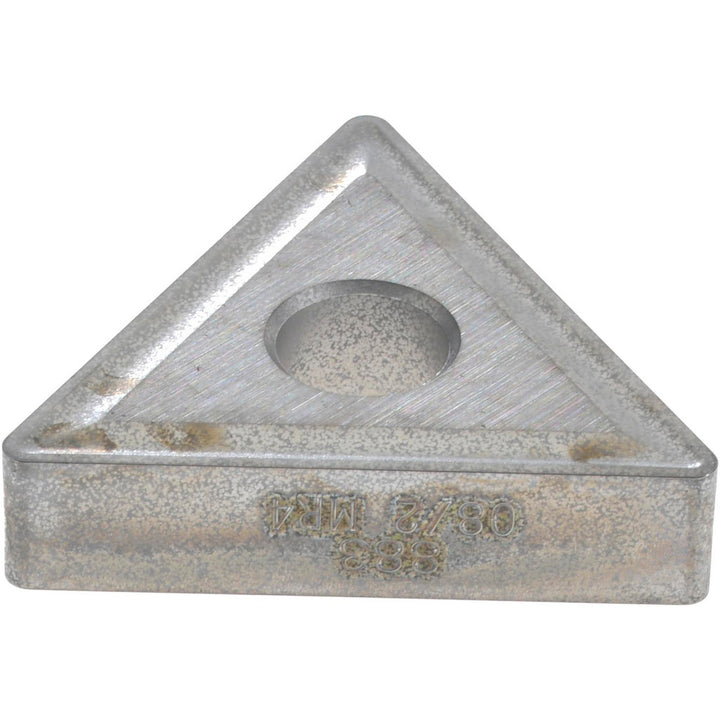

TNMG220408-MR4 Carbide Insert, Grade 883 - Seco 00007495

Seco

TNMG220408-MR4 Carbide Insert, Grade 883 - Seco 00007495

MFR# 00007495ISO/ANSI# TNMG220408Series TNMG-MR4

$17.02List $21.82 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
Grade883
MaterialCarbide

Description

The Seco 00007495 is a TNMG220408-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Ansi insert codeTNMG432
Ansi size code432
Chip breakerMR4
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle60
Industry standard numberTNMG432-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408-MR4
Iso insert codeTNMG220408
Iso size code220408
Lead angle60
Length range0.7000 - 10.0000
Manufacturers catalog number00007495
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.7874
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
