Seco

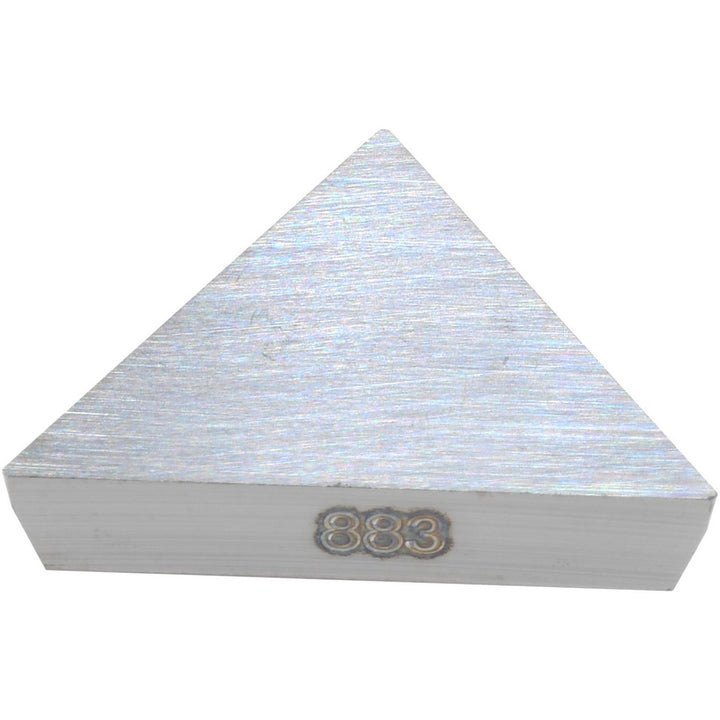

TPGN160302 Carbide Insert, Grade 883 - Seco 00008230
MFR# 00008230ISO/ANSI# TPG160301Series TPG-Flat Top
$17.09List $21.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
Grade883
MaterialCarbide
Description
The Seco 00008230 is a TPGN160302 carbide indexable insert, grade 883. Suited for superalloys & titanium.
Specifications
Ansi insert codeTPG320
Ansi size code320
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Included angle60
Industry standard numberTPG320F
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code320
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160302
Iso insert codeTPG160301
Iso size code160301
Lead angle60
Length range0.6000 - 0.6500
Manufacturers catalog number00008230
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.6220
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
