Seco

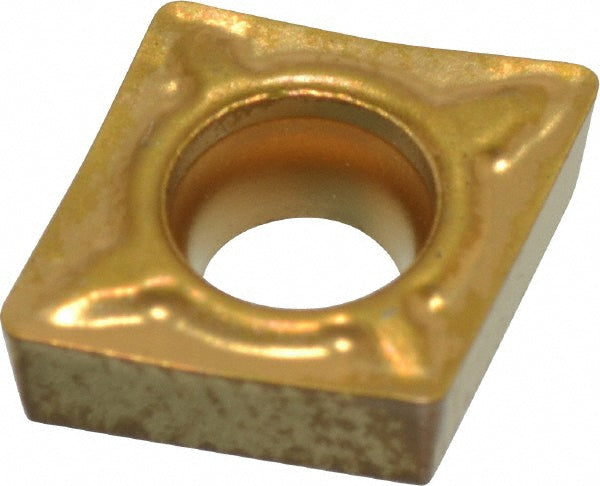

CCMT060204-F1 Carbide Insert, Grade TP40, TiC - Seco 00008505
MFR# 00008505ISO/ANSI# CCMT21.51-F1Series CCMT-F1
$12.63List $16.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 00008505 is a CCMT060204-F1 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204-F1
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number00008505
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.2362
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
