Seco

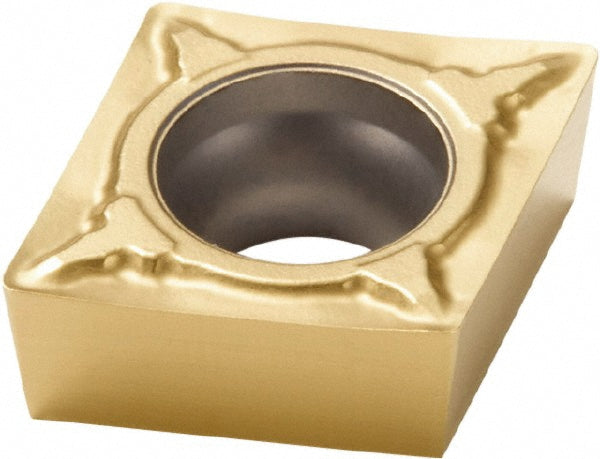

CCMT09T308-F1 Carbide Insert, Grade TP40, TiC - Seco 00008518
MFR# 00008518ISO/ANSI# CCMT32.52-F1Series CCMT-F1
$14.66List $18.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 00008518 is a CCMT09T308-F1 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMT32.52-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308-F1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number00008518
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.3504
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
