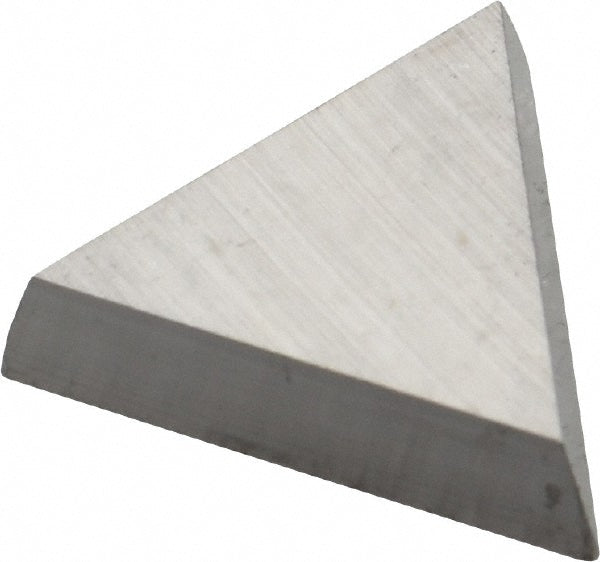

TPGN220404 Carbide Insert, Grade 883 - Seco 00008575

Seco

TPGN220404 Carbide Insert, Grade 883 - Seco 00008575

MFR# 00008575ISO/ANSI# TPG431FSeries TPG-Flat Top

$28.63List $36.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
Grade883
MaterialCarbide

Description

The Seco 00008575 is a TPGN220404 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Chip breakerFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPG431F
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code431
Insert styleTPG
Insert thickness in3/16
Iso codeTPGN220404
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number00008575
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.8504
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.8661in
Wiper edgeNo
