Seco

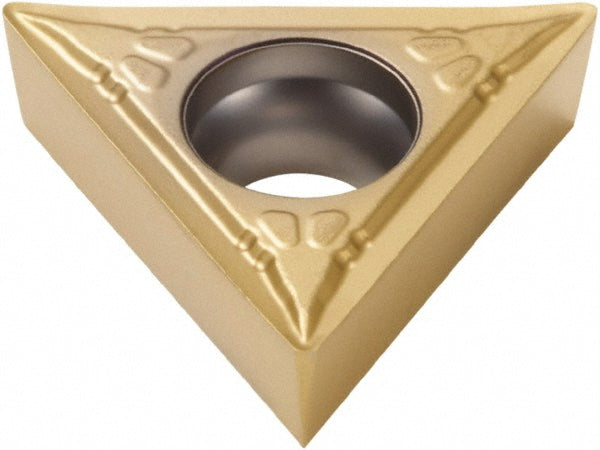

TCMT110202-F1 Carbide Insert, Grade TP40, TiC - Seco 00008593
MFR# 00008593ISO/ANSI# TCMT21.50.5-F1Series TCMT-F1
$15.15List $19.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 00008593 is a TCMT110202-F1 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle60degree
Industry standard numberTCMT21.50.5-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code21.50.5
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110202-F1
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number00008593
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.4134
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width0.4331in
Wiper edgeNo
