Seco

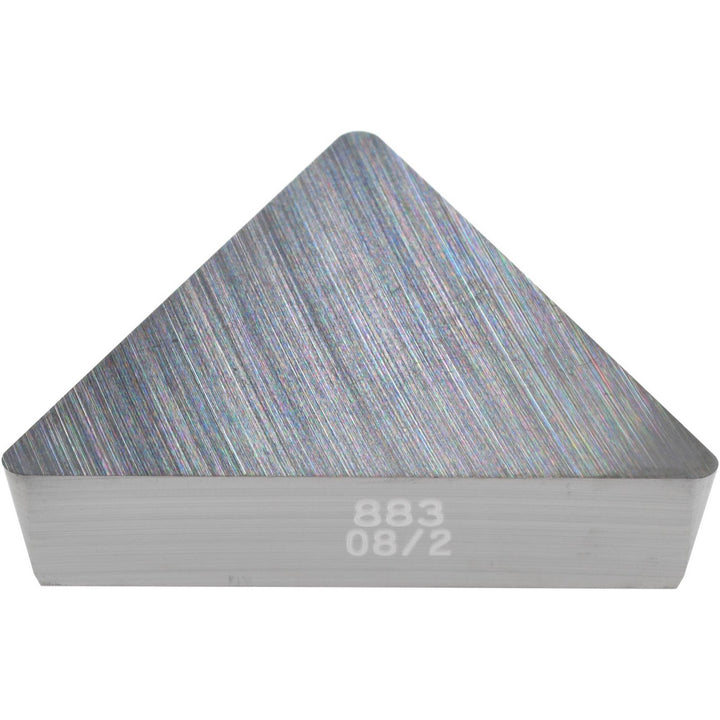

TPGN220408 Carbide Insert, Grade 883 - Seco 00008645
MFR# 00008645ISO/ANSI# TPG220408Series TPG-Flat Top
$28.63List $36.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
Grade883
MaterialCarbide
Description
The Seco 00008645 is a TPGN220408 carbide indexable insert, grade 883. Suited for superalloys & titanium.
Specifications
Ansi insert codeTPG432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Included angle60
Industry standard numberTPG432F
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTPG
Insert thickness in3/16
Iso codeTPGN220408
Iso insert codeTPG220408
Iso size code220408
Lead angle60
Length range0.7000 - 10.0000
Manufacturers catalog number00008645
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.8346
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.8661
Wiper edgeNo
