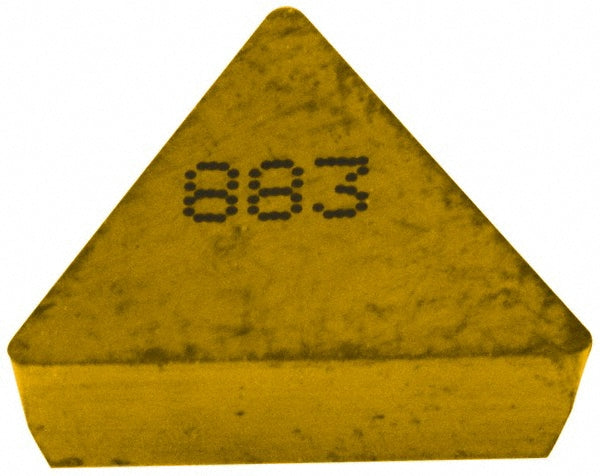

TPGN220412 Carbide Insert, Grade 883 - Seco 00008715

Seco

TPGN220412 Carbide Insert, Grade 883 - Seco 00008715

MFR# 00008715ISO/ANSI# TPG433FSeries TPG-Flat Top

$28.63List $36.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
Grade883
MaterialCarbide

Description

The Seco 00008715 is a TPGN220412 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Chip breakerFlat Top
Clearance codeP
Coating processUncoated
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPG433F
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code433
Insert styleTPG
Insert thickness in3/16
Iso codeTPGN220412
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number00008715
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.8189
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.8661in
Wiper edgeNo
