Seco
TPMM160304-46 Carbide Insert, Grade 883 - Seco 00009125
MFR# 00009125ISO/ANSI# TPMM321-46Series TPMM-46
$12.63List $16.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade883
MaterialCarbide
Description

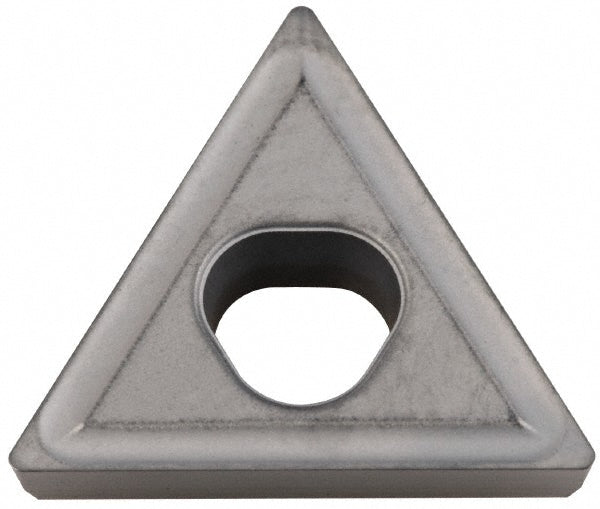

The Seco 00009125 is a TPMM160304-46 carbide indexable insert, grade 883. Suited for superalloys & titanium.
Specifications
Chip breaker46
Clearance codeP
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1650
Included angle60degree
Industry standard numberTPMM321-46
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTPMM
Insert thickness in1/8
Iso codeTPMM160304-46
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number00009125
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.6142
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
