Seco

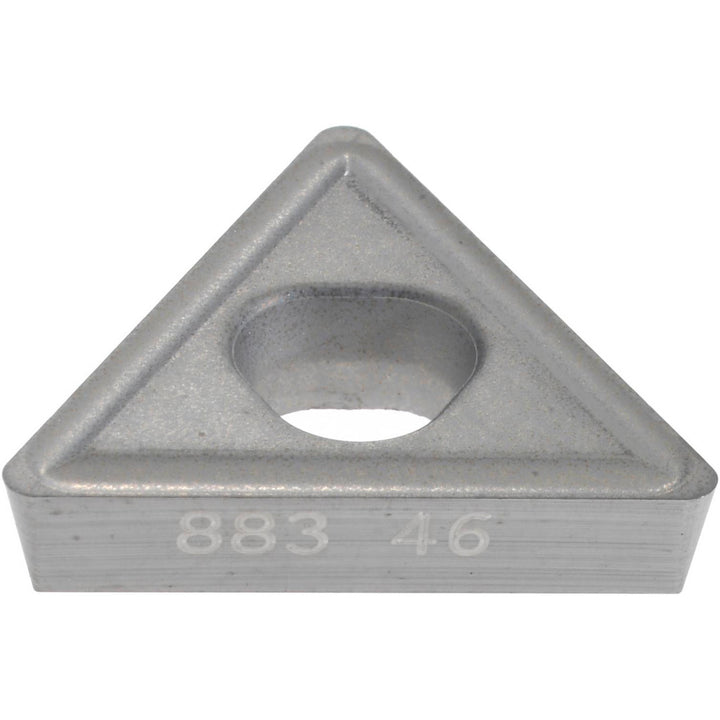

TPMM160308-46 Carbide Insert, Grade 883 - Seco 00009150
MFR# 00009150ISO/ANSI# TPMM160308Series TPMM-46
$12.63List $16.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
Grade883
MaterialCarbide
Description
The Seco 00009150 is a TPMM160308-46 carbide indexable insert, grade 883. Suited for superalloys & titanium.
Specifications
Ansi insert codeTPMM322
Ansi size code322
Chip breaker46
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.1650
Included angle60
Industry standard numberTPMM322-46
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTPMM
Insert thickness in1/8
Iso codeTPMM160308-46
Iso insert codeTPMM160308
Iso size code160308
Lead angle60
Length range0.6000 - 0.6500
Manufacturers catalog number00009150
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.5984
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
