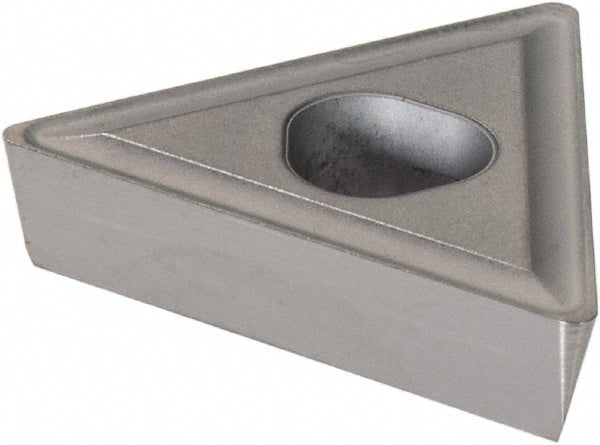

TPMM220408-46 Carbide Insert, Grade 883 - Seco 00009225

Seco

TPMM220408-46 Carbide Insert, Grade 883 - Seco 00009225

MFR# 00009225ISO/ANSI# TPMM432-46Series TPMM-46

$18.70List $23.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
Grade883
MaterialCarbide

Description

The Seco 00009225 is a TPMM220408-46 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Chip breaker46
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle60degree
Industry standard numberTPMM432-46
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTPMM
Insert thickness in3/16
Iso codeTPMM220408-46
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number00009225
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.8346
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
