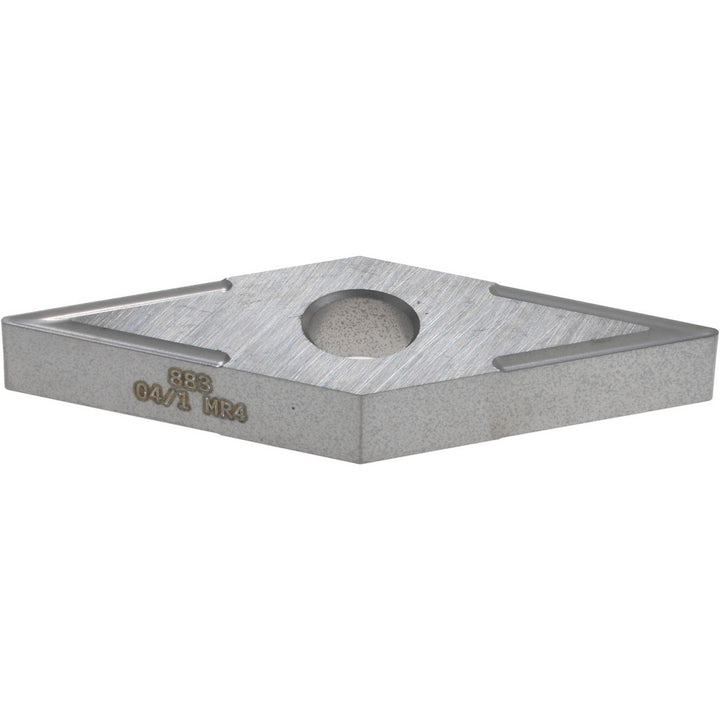

VNMG220404-MR4 Carbide Insert, Grade 883 - Seco 00009655

Seco

VNMG220404-MR4 Carbide Insert, Grade 883 - Seco 00009655

MFR# 00009655ISO/ANSI# VNMG220404Series VNMG-MR4

$35.62List $45.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeV - Diamond (Rhombic) 35-Deg
Grade883
MaterialCarbide

Description

The Seco 00009655 is a VNMG220404-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Ansi insert codeVNMG431
Ansi size code431
Chip breakerMR4
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.2330
Included angle35
Industry standard numberVNMG431-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.7322
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code431
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG220404-MR4
Iso insert codeVNMG220404
Iso size code220404
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number00009655
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.8504
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
