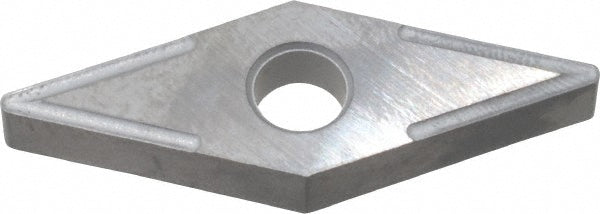

VNMG220408-MR4 Carbide Insert, Grade 883 - Seco 00009670

Seco

VNMG220408-MR4 Carbide Insert, Grade 883 - Seco 00009670

MFR# 00009670ISO/ANSI# VNMG432-MR4Series VNMG-MR4

$35.62List $45.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 35
Grade883
MaterialCarbide

Description

The Seco 00009670 is a VNMG220408-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Chip breakerMR4
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle35degree
Industry standard numberVNMG432-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.7322
Insert materialCarbide
Insert shapeDiamond 35
Insert size code432
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG220408-MR4
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number00009670
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.8346
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
