Seco

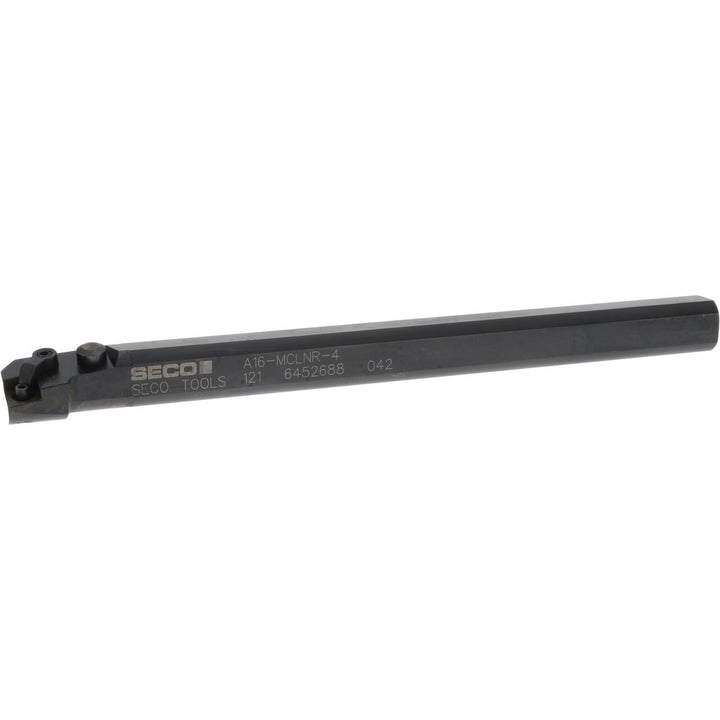

Indexable Boring - Seco 00012116
MFR# 00012116
$377.84List $432.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00012116 indexable boring.
Specifications
Center to cutting edge0.6400
Clamp numberCL-20
Clamp screwXNS-47
Compatible insert shapeDiamond
Compatible insert size code43
Coolant hole diameter0.1250
Coolant throughYes
Cutting tool applicationBoring; Turning
Hand of holderRight Hand
Insert compatibilityCNMG 432
Insert holding methodPin & Clamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle-5
Lock pin numberNL-44
Minimum bore diameter1.2800
Multi use toolNo
Overall length in12
RakeNegative
Rake angle-14.00
Shank diameter in1
Toolholder styleMCLN
Tool materialSteel
