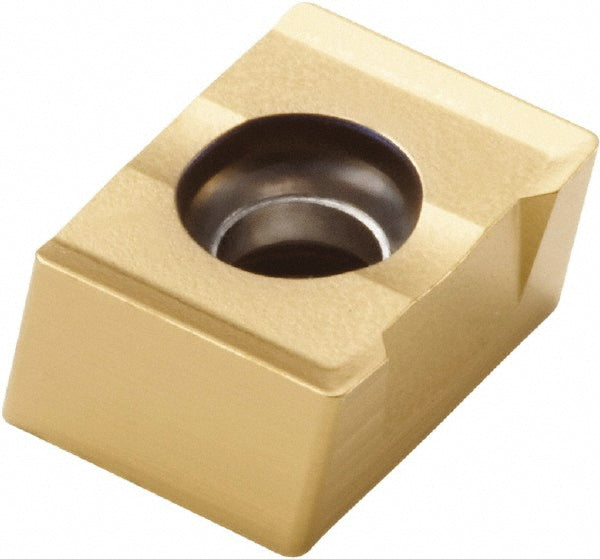

LNKT060516PPTN-M06 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00013123
MFR# 00013123ISO/ANSI# LNKT060516PPTN-M06Cat# LNKT060516PPTN-M06Series LNKT-06
$27.71List $34.88
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00013123 is a LNKT060516PPTN-M06 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeLNKT060516PPTN-M06
Chip breakerM06
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityR335.18
Cutting edge effective length0.2362
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2362
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size06
Insert size code060516
Insert styleLNKT
Iso codeLNKT060516PPTN-M06
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberLNKT060516PPTN-M06
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width0.2362
