Seco

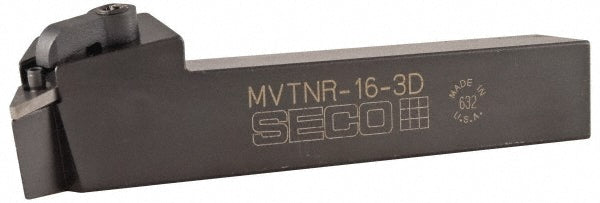

Indexable Turning & Profiling - Seco 00013222
MFR# 00013222Cat# MVTNR; L163DSeries Multiple Lock
$186.08List $212.75
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00013222 indexable turning & profiling. Suited for universal. Series Multiple Lock.
Specifications
Back of bar to cutting edge in1-1/4
Compatible insert size codeVN33
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.7100
Insert compatibilityVN..33.
Insert holding methodClamp; Pin
Insert inscribed circle in3/8
Manufacturers catalog numberMVTNR; L163D
Multi use toolNo
Overall length in6
Primary workpiece materialUniversal
RakeNegative
Rake angle-4; -9.53; -9.83
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleMVTN
