Seco

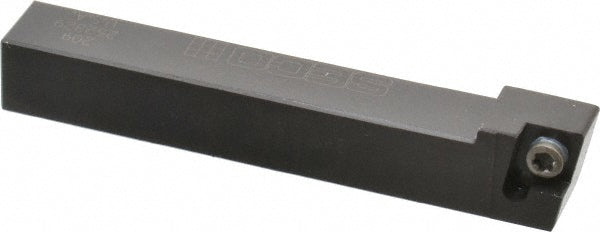

Indexable Turning & Profiling - Seco 00013326
MFR# 00013326Cat# SCGCR; L83Series Screw Lock
$143.57List $164.15
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00013326 indexable turning & profiling. Suited for universal. Series Screw Lock.
Specifications
Back of bar to cutting edge in5/8
Compatible insert size codeCC325
Complete insert compatibilityCCMT 32.52
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.6200
Insert compatibilityCC..32.5.
Insert holding methodScrew
Insert inscribed circle in3/8
Lead angle90.0
Manufacturers catalog numberSCGCR; L83
Multi use toolNo
Overall length in3-1/2
Primary workpiece materialUniversal
RakeNeutral
Rake angle0
Shank height in1/2
Shank width in1/2
Toolholder materialSteel
Toolholder styleSCGC
