Seco

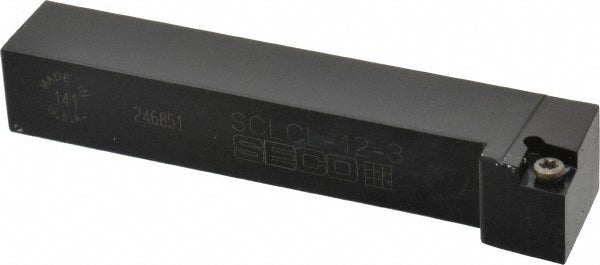

Indexable Turning & Profiling - Seco 00013337
MFR# 00013337Series Screw Lock
$169.19List $190.08
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00013337 indexable turning & profiling. Suited for universal. Series Screw Lock.
Specifications
Back of bar to cutting edge in1
Compatible insert size codeCC325
Complete insert compatibilityCCMT 32.52
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length0.6900
Insert compatibilityCC..32.5.
Insert holding methodScrew
Insert inscribed circle in3/8
Multi use toolNo
Overall length in4-1/2
Primary workpiece materialUniversal
RakeNeutral
Rake angle0
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleSCLC
