Seco

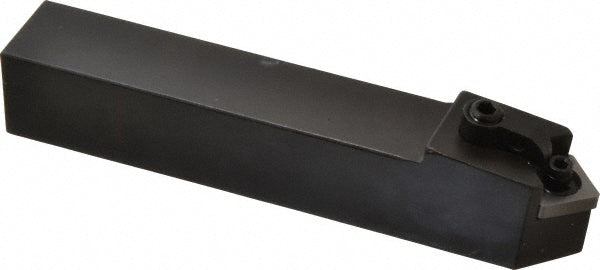

Indexable Turning & Profiling - Seco 00013360
MFR# 00013360Cat# MSDNN165Series Multiple Lock
$154.91List $177.12
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00013360 indexable turning & profiling. Suited for universal. Series Multiple Lock.
Specifications
Back of bar to cutting edge in1/2
Compatible insert size codeSN54
Coolant throughNo
Cutting directionNeutral
Cutting tool applicationTurning
Hand of holderNeutral
Head length1.6100
Insert compatibilitySN..54.
Insert holding methodClamp; Pin
Insert inscribed circle in5/8
Manufacturers catalog numberMSDNN165
Multi use toolNo
Overall length in6
Primary workpiece materialUniversal
RakeNegative
Rake angle-6; 0
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleMSDN
