Seco

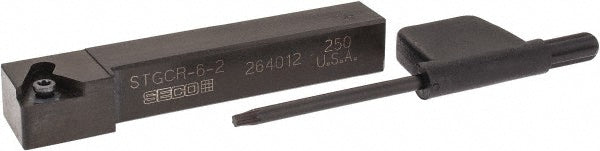

Indexable Turning & Profiling - Seco 00013373
MFR# 00013373Cat# STGCR; L62Series Screw Lock
$143.57List $164.15
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00013373 indexable turning & profiling. Suited for universal. Series Screw Lock.
Specifications
Back of bar to cutting edge in1/2
Compatible insert size codeTC215
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.6200
Insert compatibilityTC..21.5.
Insert holding methodScrew
Insert inscribed circle in1/4
Lead angle90.0
Manufacturers catalog numberSTGCR; L62
Multi use toolNo
Overall length in2-1/2
Primary workpiece materialUniversal
RakeNeutral
Rake angle0
Shank height in3/8
Shank width in3/8
Toolholder materialSteel
Toolholder styleSTGC
