Seco

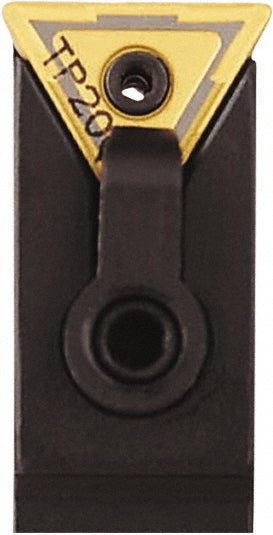

Indexable Turning & Profiling - Seco 00013840
MFR# 00013840Series Multi-Directional Turning (MDT)
$151.13List $178.80
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00013840 indexable turning & profiling. Suited for universal. Series Multi-Directional Turning (MDT).
Specifications
Compatible insert size codeTN43
Coolant throughNo
Cutting directionNeutral
Cutting tool applicationTurning
Hand of holderNeutral
Head length1.4300
Insert compatibilityTNMG 432
Insert holding methodClamp
Insert inscribed circle in1/2
Multi use toolNo
Overall length8.0000
Primary workpiece materialUniversal
RakeNeutral
Rake angle0
Shank height1.0000
Shank width0.7500
Toolholder styleMTCN
