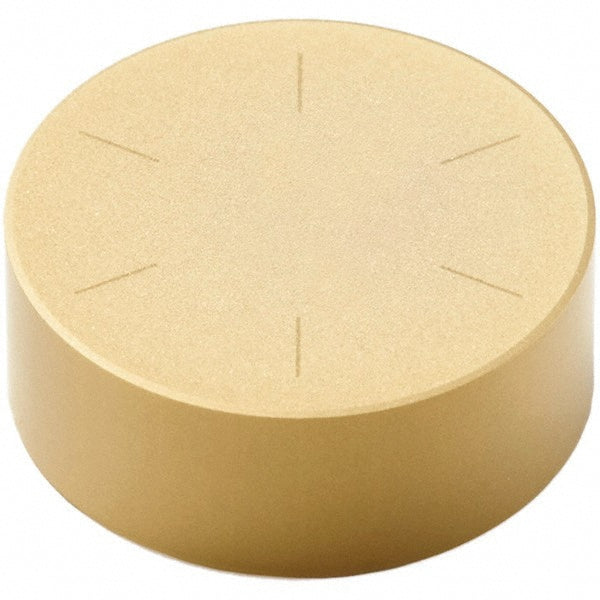

RNMN090300S Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN300P, TiAlN - Seco 00014858
MFR# 00014858ISO/ANSI# RNMN32SSeries RNMN-Flat Top
$215.16
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRound
GradeCBN300P
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
CoatingTiAlN
Description
The Seco 00014858 is a RNMN090300S polycrystalline cubic boron nitride (pcbn) indexable insert, grade CBN300P, TiAlN coated. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiAlN
Coating processPCBN
Corner radius in3/16
Cutting edge styleChamfered & Honed
Full radiusYes
Hole diameter0.1730
Included angle360degree
Industry standard numberRNMN32S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length in3/8
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeRound
Insert size code42
Insert styleRNMN
Insert thickness in1/8
Iso codeRNMN090300S
Lead angle360degree
Length range0.3000 - 0.4000
Manufacturers catalog number00014858
Manufacturer gradeCBN300P
Material gradeK01; K10; K20; K30
Maximum depth of cut0.0320
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges10
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
