Seco

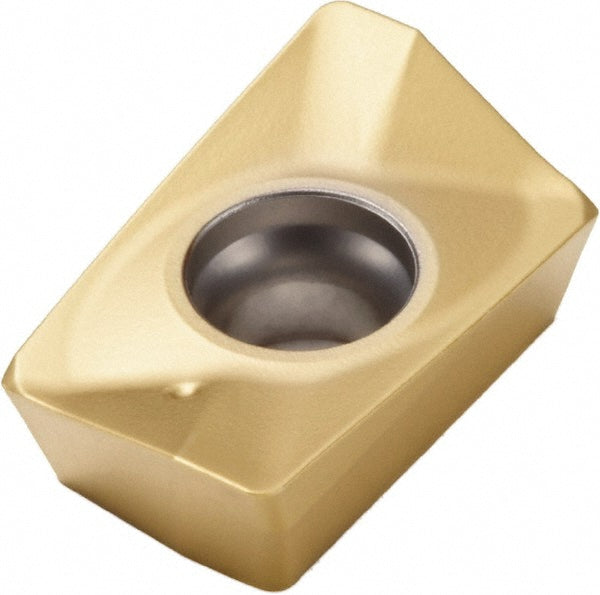

XOMX180608TR-M14 Solid Carbide Insert, Grade F30M, TiAlN - Seco 00015003
MFR# 00015003ISO/ANSI# XOMX180608TR-M14Cat# XOMX180608TR-M14Series XOMX-18
$28.56List $36.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeF30M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00015003 is a XOMX180608TR-M14 solid carbide indexable insert, grade F30M, TiAlN coated. Suited for universal.
Specifications
Ansi codeXOMX180608TR-M14
Chip breakerM14
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180608
Insert styleXOMX
Iso codeXOMX180608TR-M14
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180608TR-M14
Manufacturer gradeF30M
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeMicrograin
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialUniversal
RakePositive
Rake angle15.5
Relief angle15
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.4409
