Seco

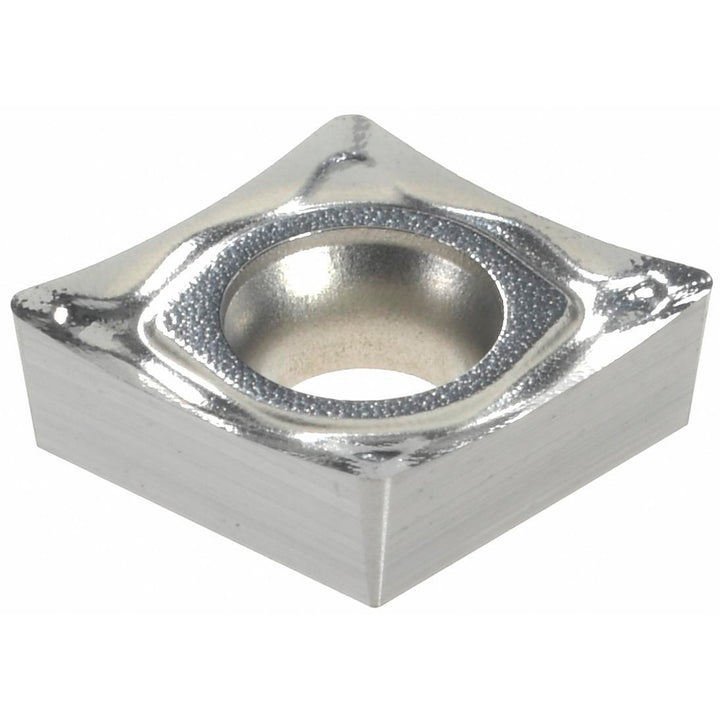

CCGT060204F-AL Carbide Insert, Grade KX - Seco 00015710
MFR# 00015710ISO/ANSI# CCGT060204Series CCGT-AL
$21.86List $27.55
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKX
MaterialCarbide
Description
The Seco 00015710 is a CCGT060204F-AL carbide indexable insert, grade KX. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCGT21.51
Ansi size code21.51
Chip breakerAL
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCCGT21.51F-AL
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060204F-AL
Iso insert codeCCGT060204
Iso size code060204
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number00015710
Manufacturer gradeKX
Material gradeN15; N20; N25
Maximum depth of cut0.2402
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
