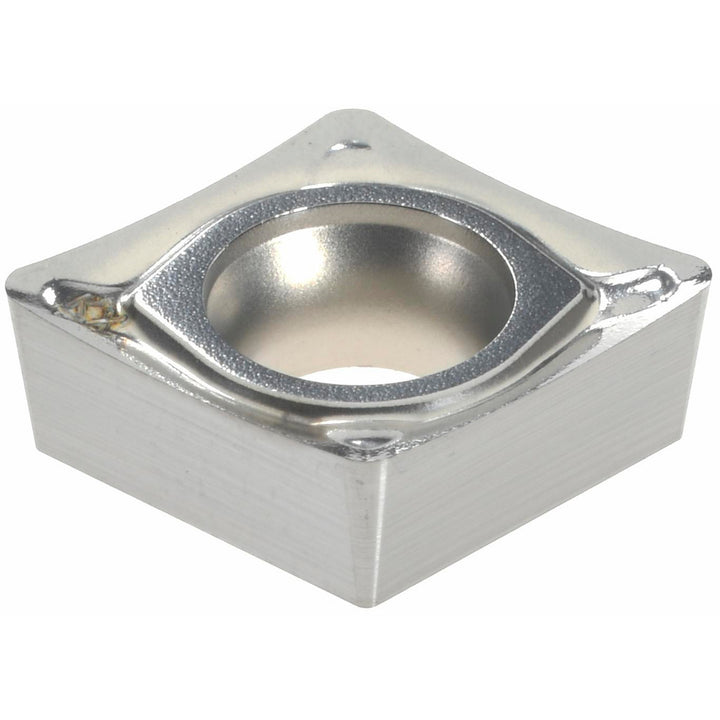

CCGT09T308F-AL Carbide Insert, Grade KX - Seco 00015754
MFR# 00015754ISO/ANSI# CCGT09T308Series CCGT-AL
$19.30List $24.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKX
MaterialCarbide
Description
The Seco 00015754 is a CCGT09T308F-AL carbide indexable insert, grade KX. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCGT32.52
Ansi size code32.52
Chip breakerAL
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating processUncoated
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCGT32.52F-AL
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T308F-AL
Iso insert codeCCGT09T308
Iso size code09T308
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number00015754
Manufacturer gradeKX
Material gradeN15; N20; N25
Maximum depth of cut0.3504
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
