Seco

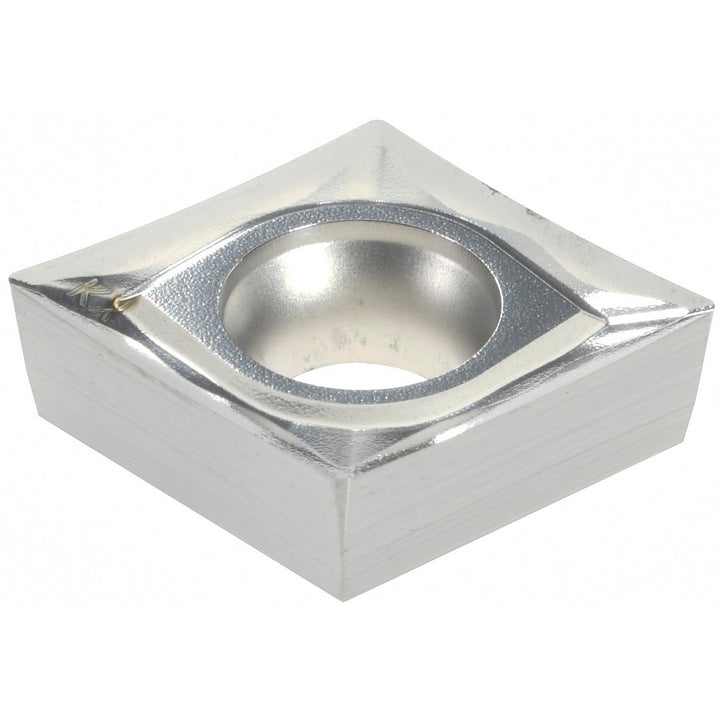

CCGT120404F-AL Carbide Insert, Grade KX - Seco 00015778
MFR# 00015778ISO/ANSI# CCGT120404Series CCGT-AL
$22.15List $28.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKX
MaterialCarbide
Description
The Seco 00015778 is a CCGT120404F-AL carbide indexable insert, grade KX. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCGT431
Ansi size code431
Chip breakerAL
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2165
Included angle80
Industry standard numberCCGT431F-AL
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCCGT
Insert thickness in3/16
Iso codeCCGT120404F-AL
Iso insert codeCCGT120404
Iso size code120404
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number00015778
Manufacturer gradeKX
Material gradeN15; N20; N25
Maximum depth of cut0.4921
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
