Seco

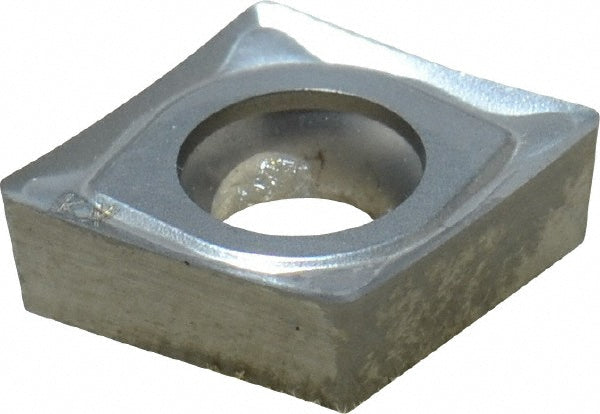

CCGT120408F-AL Carbide Insert, Grade KX - Seco 00015790
MFR# 00015790ISO/ANSI# CCGT432F-ALSeries CCGT-AL
$22.15List $28.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKX
MaterialCarbide
Description
The Seco 00015790 is a CCGT120408F-AL carbide indexable insert, grade KX. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Coating processUncoated
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2165
Included angle80degree
Industry standard numberCCGT432F-AL
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCCGT
Insert thickness in3/16
Iso codeCCGT120408F-AL
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number00015790
Manufacturer gradeKX
Material gradeN15; N20; N25
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
