Seco

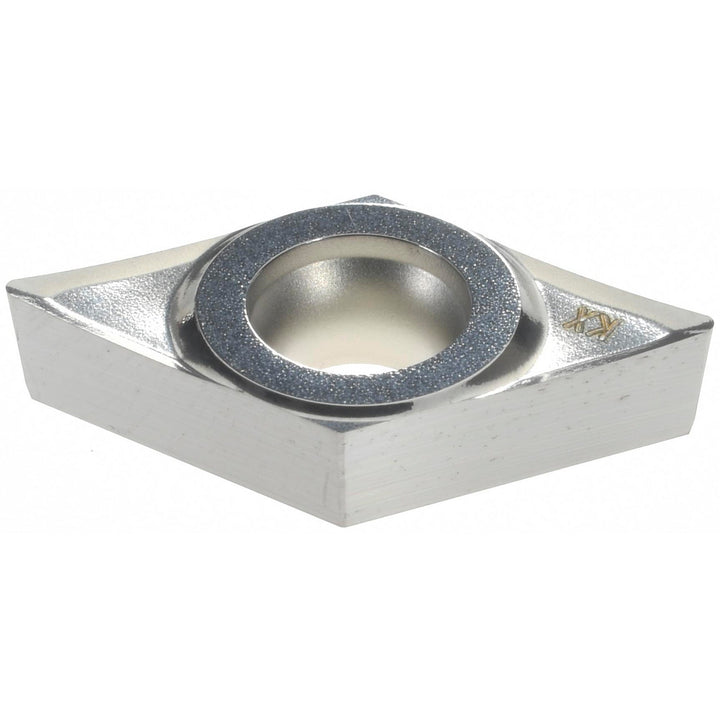

DCGT11T304F-AL Carbide Insert, Grade KX - Seco 00015848
MFR# 00015848ISO/ANSI# DCGT11T304Series DCGT-AL
$20.71List $26.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKX
MaterialCarbide
Description
The Seco 00015848 is a DCGT11T304F-AL carbide indexable insert, grade KX. Suited for non-ferrous metal.
Specifications
Ansi insert codeDCGT32.51
Ansi size code32.51
Chip breakerAL
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Industry standard numberDCGT32.51F-AL
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304F-AL
Iso insert codeDCGT11T304
Iso size code11T304
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number00015848
Manufacturer gradeKX
Material gradeN15; N20; N25
Maximum depth of cut0.4409
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
