Seco

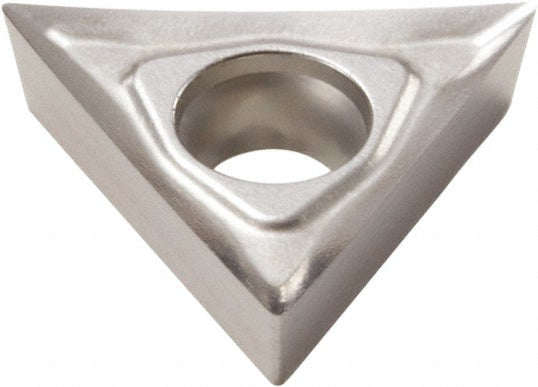

TCGT16T308F-AL Carbide Insert, Grade KX - Seco 00015875
MFR# 00015875ISO/ANSI# TCGT32.52F-ALSeries TCGT-AL
$23.92List $30.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKX
MaterialCarbide
Description
The Seco 00015875 is a TCGT16T308F-AL carbide indexable insert, grade KX. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Coating processUncoated
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1732
Included angle60degree
Industry standard numberTCGT32.52F-AL
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCGT
Insert thickness in5/32
Iso codeTCGT16T308F-AL
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number00015875
Manufacturer gradeKX
Material gradeN15; N20; N25
Maximum depth of cut0.6181
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width0.6496in
Wiper edgeNo
