Seco

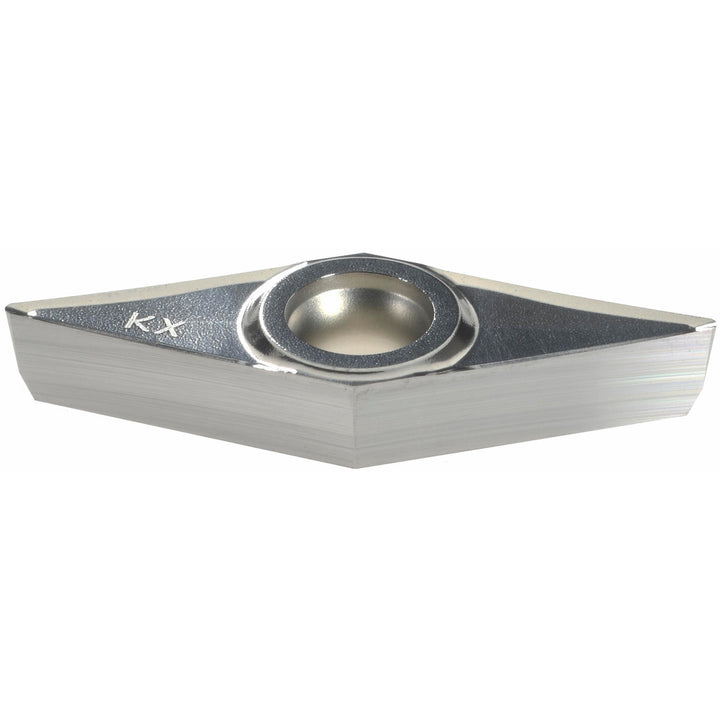

VCGT160404F-AL Carbide Insert, Grade KX - Seco 00015937
MFR# 00015937ISO/ANSI# VCGT160404Series VCGT-AL
$26.77List $34.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKX
MaterialCarbide
Description
The Seco 00015937 is a VCGT160404F-AL carbide indexable insert, grade KX. Suited for non-ferrous metal.
Specifications
Ansi insert codeVCGT331
Ansi size code331
Chip breakerAL
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle35
Industry standard numberVCGT331F-AL
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3070
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVCGT
Insert thickness in3/16
Iso codeVCGT160404F-AL
Iso insert codeVCGT160404
Iso size code160404
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number00015937
Manufacturer gradeKX
Material gradeN15; N20; N25
Maximum depth of cut0.6378
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
