Seco

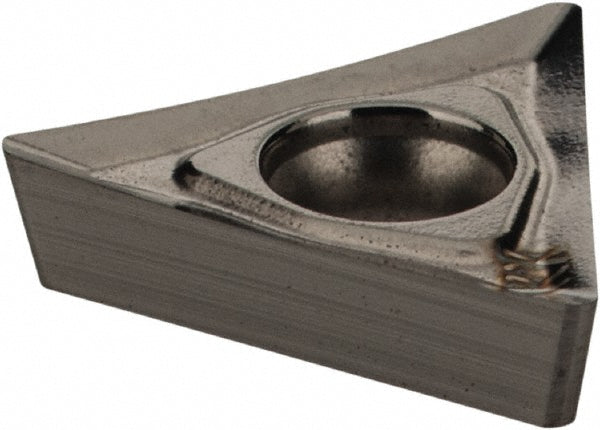

TCGT110204F-AL Carbide Insert, Grade KX - Seco 00016137
MFR# 00016137ISO/ANSI# TCGT21.51F-ALSeries TCGT-AL
$25.04List $31.55
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeKX
MaterialCarbide
Description
The Seco 00016137 is a TCGT110204F-AL carbide indexable insert, grade KX. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1102
Included angle60degree
Industry standard numberTCGT21.51F-AL
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT110204F-AL
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number00016137
Manufacturer gradeKX
Material gradeN15; N20; N25
Maximum depth of cut0.4173
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width0.4331in
Wiper edgeNo
