Seco

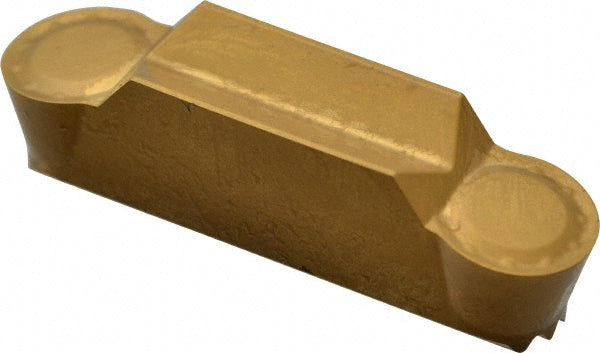

Solid Carbide Insert, Grade CP500, Coated - Seco 00016403
MFR# 00016403Series MDT
$85.10List $107.24
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00016403 is a solid carbide indexable insert, grade CP500, Coated coated.
Specifications
ChipbreakerMP
Coating finishCoated
Coating processPVD
Corner radius0.1570
Cutting height0.2160
Full radiusYes
Full radius insertYes
Insert handNeutral
Insert length1.1830
Insert materialSolid Carbide
Insert size code3008M0
Insert styleLCMF
Manufacturer gradeCP500
Material gradeMicrograin
Maximum cutting width0.3150
Relief angle7
Single or double endDouble
StyleLCMF3008M0-0800-MP
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
