Seco
Solid Carbide Insert, Grade CP500, Coated - Seco 00016725
MFR# 00016725Series MDT
$30.57List $39.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description

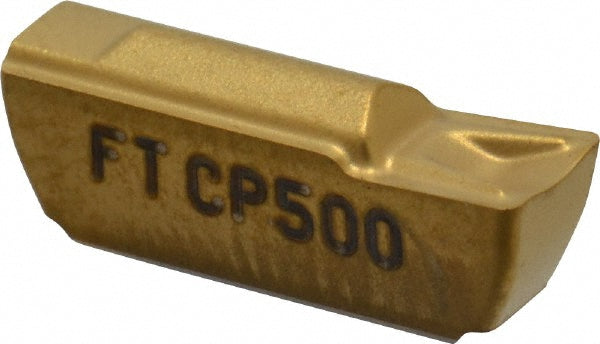

The Seco 00016725 is a solid carbide indexable insert, grade CP500, Coated coated.
Specifications
ChipbreakerFT
Coating finishCoated
Coating processPVD
Corner radius0.0160
Cutting height0.1570
Full radiusYes
Full radius insertYes
Insert handNeutral
Insert length0.4860
Insert materialSolid Carbide
Insert size code130404
Insert styleLCMR
Manufacturer gradeCP500
Material gradeMicrograin
Maximum cutting width0.1570
Relief angle7
Single or double endSingle
StyleLCMR130404-0400-FT
