Seco
Solid Carbide Insert, Grade CP500, Coated - Seco 00018284
MFR# 00018284Series MDT
$41.44List $53.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description

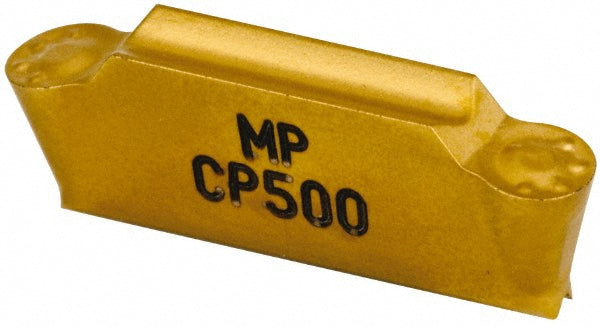

The Seco 00018284 is a solid carbide indexable insert, grade CP500, Coated coated.
Specifications
ChipbreakerMP
Coating finishCoated
Coating processPVD
Corner radius in1/16
Cutting height0.1770
Full radiusYes
Full radius insertYes
Insert handNeutral
Insert length0.6830
Insert materialSolid Carbide
Insert size code160300
Insert styleLCMF
Manufacturer gradeCP500
Material gradeMicrograin
Maximum cutting width0.1250
Relief angle7
Single or double endDouble
StyleLCMF160300-A125-MP
