Seco

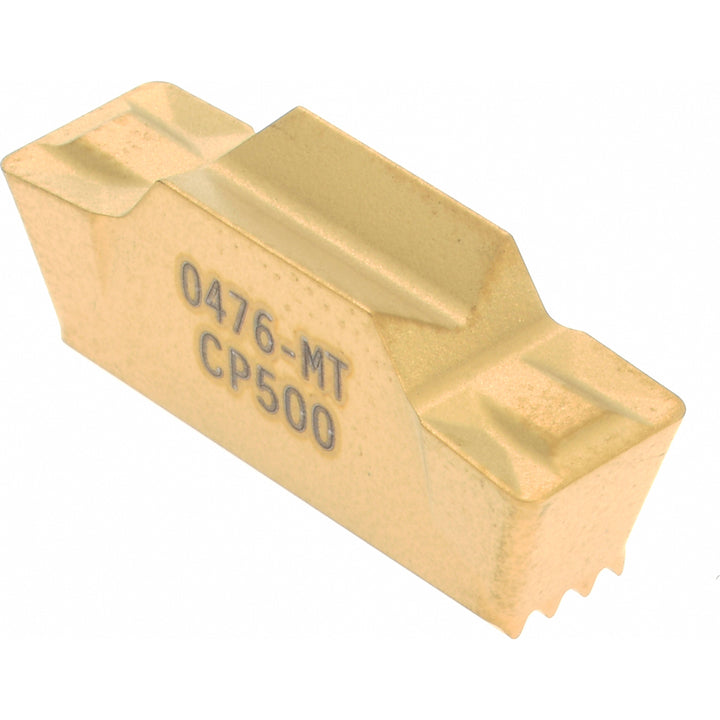

Solid Carbide Insert, Grade CP500, Coated - Seco 00018388
MFR# 00018388Cat# LCMF160505-A187-MTSeries MDT
$54.07List $68.14
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00018388 is a solid carbide indexable insert, grade CP500, Coated coated.
Specifications
ChipbreakerMT
Coating finishCoated
Coating processPVD
Corner radius0.0197
Cutting height0.1770
Included angle degree90
Insert handNeutral
Insert holding methodClamp
Insert length0.6300
Insert materialSolid Carbide
Insert size code160505
Insert styleLCMF
Manufacturers catalog numberLCMF160505-A187-MT
Manufacturer gradeCP500
Material gradeMicrograin
Maximum cutting width0.1870
Maximum depth of cut0.1870
Relief angle7
ShapeRectangle
